FJ Maintenance Hub
The purpose of this page is so that I have a single location where I can look up part numbers, torque specs, how-tos, etc for my 2007 FJ Cruiser (GSJ15).
This information is provided as a personal reference only. While I’ve done my best to keep it accurate, there is no guarantee of completeness or correctness. Vehicle configurations, part numbers, and torque or fluid specifications may vary by model, year, or region. Use at your own risk—always double-check with the official service manual or a qualified technician before performing any maintenance or repairs.
Engine Oil
Oil weight: 5W-30, 5.5 qt
Drain plug washer: 90430-12031
Oil pan drain plug torque: 30 ft/lbs
Rear Diff
Oil: 3.1 qt, GL-5 75W-90
(ECGS recommends Dino (Non-Synthetic) 85w140 Lucas oil )
Fill & drain plug washer: 12157-10010
Fill & drain plug torque: 36 ft/lbs
Front Diff
Oil: 1.5 qt 75W-90
Fill plug can replaced with Lexus hex bolt: 90341-18060
Drain plug can be replaced with Lexus hex bolt: 90341-24016
Fill plug washer: 12157-10010
Drain plug washer: 90430-24003
Fill plug torque: 29 ft/lbs
Drain plug torque: 48 ft/lbs
Transfer Case
Oil: 1.5 qt, GL-5 75W-90
Fill & drain plug washer: 90430-18008
Fill & drain plug torque: 27 ft/lbs
Transmission
Oil: Toyota ATF WS
Fill plug O-ring: 90301-15004
Check & drain plug washer: 35178-30010
Level check temp range: 115F - 130F; shift through gears ~6 seconds each
Drive Shaft
Grease: NLGI No 2
Suspension
(ref: https://www.fjcruiserforums.com/posts/8118841/)
LCA Rearward Cam Parts
Cam assembly, camber adjust: 48190-60020 (req 2) [$19.97 ea]
Cam, camber adjust, No.2: 48198-60011 (req 2) [$19.25 ea]
LCA nut: (90179-14069 or 90178-16007?) 90170-14026 (req 2) [$1.60 ea]
Bushing, front lower arm, No.2 RH: 48655-60030 (req 1)
Bushing, front lower arm, No.2 LH: 48655-60030 (req 1)
LCA Frontward Cam Parts
Cam sub-assembly, front suspension toe adjust: 48409-60020 (req 2) [$25.33 ea]
Plate, front suspension toe adjust, No.2: 48452-35020 (req 2) [$27.05 ea]
Suspension control arm bolt: 90119-14120 (req 2) [$8.65 ea]
Bushing, front lower arm, No.1 RH: 48654-60030 (req 1)
Bushing, front lower arm, No.1 LH: 48654-60030 (req 1)
Steering
Inner tie rod: Sankei 555 45503-39305J
Outer tie rod: Sankei 555 45046-39505J / OEM 45046-39505
Rack and pinion bellows: 45535-26030
Bellows inner clamp: 90467-19021
Bellows outer clamp: 90460-55016
Tie rod jam nut: 90170-15001
Cooling
Coolant capacity: 10.4 qt
Cylinder block drain plugs torque: 10 ft/lbs
Water pump: 16100-09471 (supercedes 16100-09470)
Water pump gasket: 16124-0P030 (included w/ water pump)
Thermostat: 16031-0P010
Thermostat gasket: 16325-31010 (included w/ thermostat)
Upper radiator hose: 16571-31130
Lower radiator hose: 16572-31170
Water Bypass No 1: 16261-AD010
Water Bypass No 2: 16264-AD010
Water Bypass No 3: 16267-0P030
Water Bypass No 4: 16281-0P010
Water Bypass No 5: 16282-0P010
Engine
Spark plugs: DENSO K20HR−U11 or NGK LFR6C11
Spark plug gap, mm (in.): 1.1 (0.043)
Spark plug torque: 14 ft/lbs
Ignition coils: 7.4 ft/lbs
Drive belt: 99367-H2120
Upper Idler Pulley: 16604-0P011 x2 (supercedes 16604-0P010)
Pulley Plate 16659-AD010 x2 (supercedes 16659-31011)
Tensioner 16620-31013 (supercedes 16620-31012)
Lower Idler Pulley 16603-0P030 (supercedes 16603-0P020)

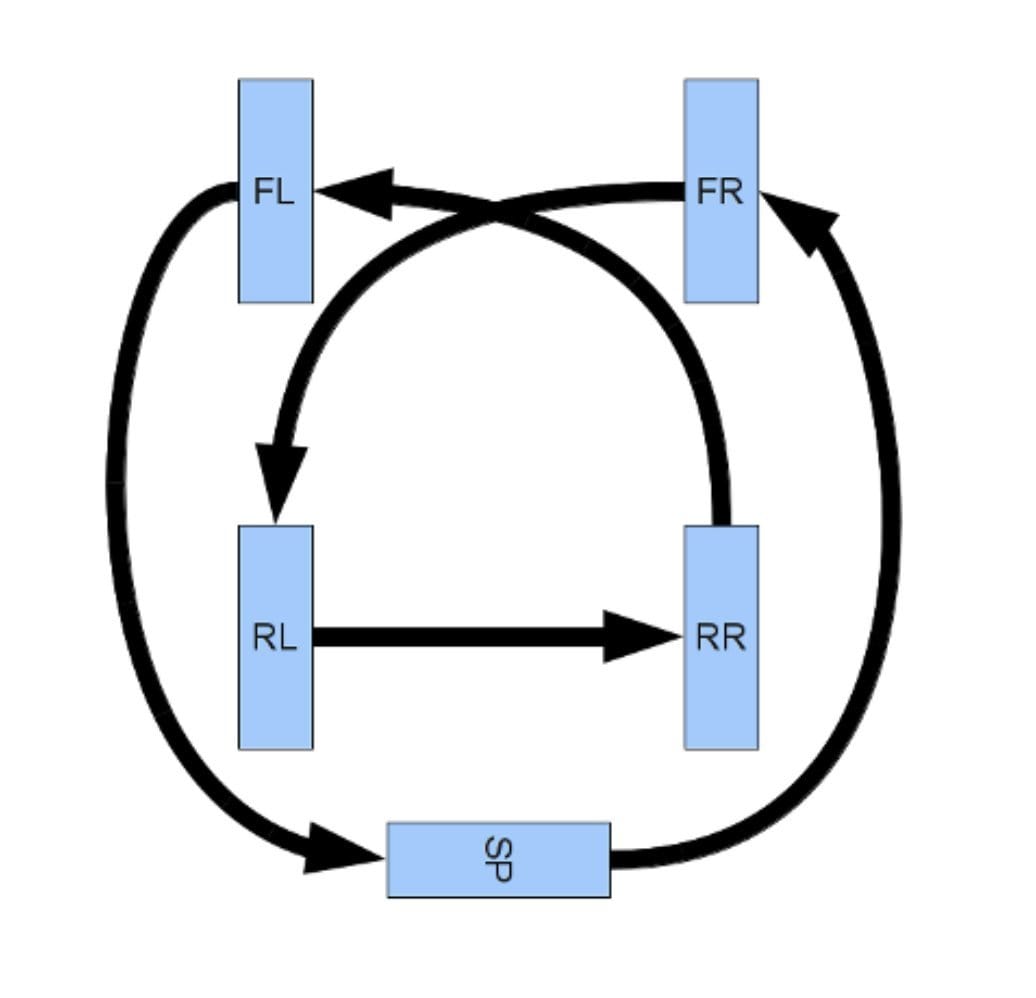

Wheels
Lug nut torque: 85 ft/lbs
Skid Plates
Bolts torque: 25 ft/lbs
Wipers
Driver wiper insert: 85214-50061
Center/passenger wiper insert: 85214-68011
Rear wiper insert: 85214-35070
